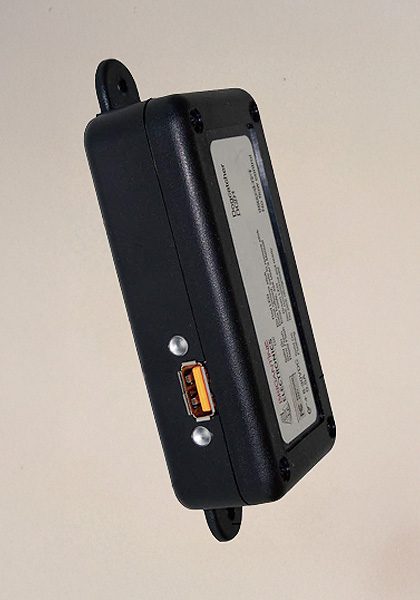

What is the Dogcatcher serial data logger?

Dogcatcher FAQThe Dogcatcher is a physically and electronically robust device which records data from an RS-232 serial port and writes the data to a USB memory stick. The Dogcatcher is designed for recording serial data in industrial and electronics production facilities as well as automated test and design engineering environments.


With what serial devices can I use the Dogcatcher?

Dogcatcher FAQThe Dogcatcher serial data logger will record from a device which sends RS-232 data with eight bits per character, no parity, 1 stop bit (8-N-1). 8-N-1 is the most common serial setting. Devices which generate this type of data include programmable logic controllers, microcontrollers and microprocessors when used with serial voltage translators, computers and some test equipment. The Dogcatcher 2 must be used if the baud rate is anything other than 9600.


BRIGANTINE ELECTRONICS began with a product idea and a proof of concept in 2009. In 2010 Brigantine Electronics, LLC was formed. Since then we have been designing, manufacturing and shipping from Southwest Michigan. Brigantine looks forward to serving you with solutions for better automation.

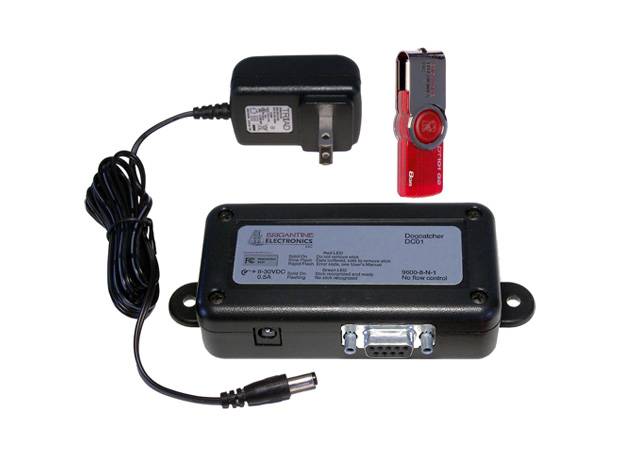

What is a Data Logger?
Serial Data Loggers
A DATA LOGGER is an electronic device which creates a record, or log. Some data loggers have internal sensors for common measurements such as temperature or humidity. Other data loggers may be connected to a wide range of sensors, meters, scales or other devices to fit the needs of the system designer.

Data loggers have been used:
To study the flying efficiencies of migrating birds
To monitor the reintroduction of vulnerable birds & fish
In weather stations
To monitor mine conditions
To monitor the performance of test cars
To monitor experiments in outer space

Data loggers record a series of measurements, such as an air pressure reading every minute or the
weight on a scale each time a package appears. They save the data in a way that is convenient to the
end user.

Why use the Dogcatcher?
Having the data means making decisions with more confidence. Others can have confidence in your decisions, too. You can have the data in a convenient, portable format. The Dogcatcher is a data logger for industrial settings and industrial temperatures.

... Use the Dogcatcher

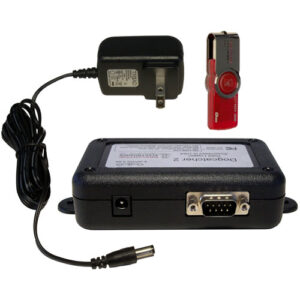

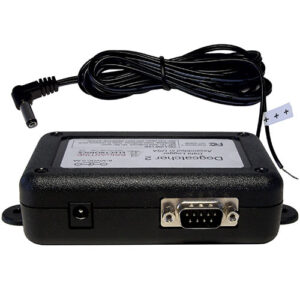

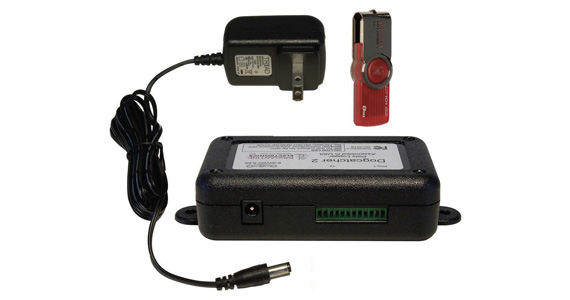

The Dogcatcher 2 Data LoggerThe Dogcatcher 2
The Dogcatcher 2 is a feature rich serial to USB data logger. The user can select the RS-232 baud rate, enable or disable RTS/CTS handshaking, and configure timestamping. The configuration options on the Dogcatcher 2 serial data logger allow its use with many GPS systems, pressure sensors and automated test systems.
Learn More About The Docatcher 2

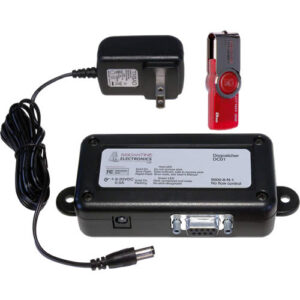

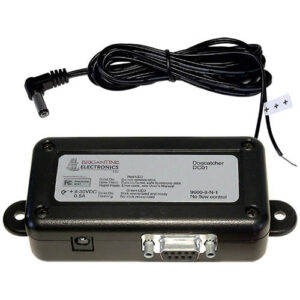

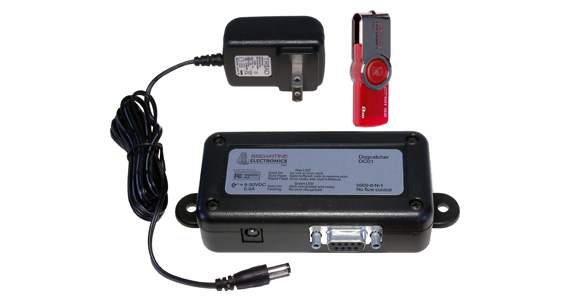

The Original Dogcatcher Data LoggerThe Original Dogcatcher
The original Dogcatcher is a quick and easy serial data logger solution for many applications with the most common RS-232 settings: 9600 baud, 8N1. The Dogcatcher is the most economical choice for use with most scales and many RFID systems.
Learn More About The Original Docatcher

WHEN you need to log data from a PLC
WHEN you want to collect a debug stream from your microcontroller
WHEN you have status provided in an RS-232 format
WHEN you don't want to dedicate a computer to a job
WHEN you can't wait for the systems department to put in a network drop


RS-232 Data LoggerDogcatcher Features:

Rugged housing
Low power
Low profile
Mounting tabs so it stays in place
Logs to standard USB memory stick
Log file size limited only by capacity of USB stick
Ready to use out of the box



Industries that benefit
from our serial data logger:

Automotive
Agriculture
Controls Engineering
Industrial Automation
Industrial Controls
Industrial Devices & Systems
Industrial Machines
Transportation
University Research
Automated Test Equipment
Production Test Equipment
Electronics
Information Technology
Weights and Measures
Mining


DESIGNED FOR:
Controls Engineers
Electrical Engineers
Electronics Engineers
Industrial Engineers
Electronics Technicians
Production Technicians


USEFUL FOR LOGGING:
Environmental Conditions
Scale Readings
Test Data
Diagnostic Information
Lab Instrument Readings
